> Adjustable Choke Valves

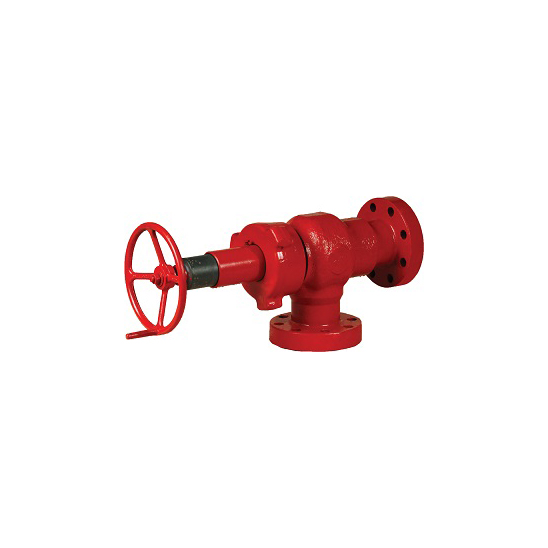

Adjustable Choke Valves
- Product description: Adjustable Chokes are intended to aid, control and vary flow in various well conditions.
PRODUCT INTRODUCTION
YanCheng ValveDepot Manufacture Co., Ltd. manufactures both Positive and Adjustable chokes with a working pressure rating up to 15,000 psi.
Adjustable Chokes are intended to aid, control and vary flow in various well conditions. Our Chokes have an external indicator to easily read orifice size to calculate flow rate in increment of 1/64th inch. The variation in choker size is achieved using the hand wheel to obtain desired flow on the downstream side.
√ Manufactured and tested in accordance with API 6A.
√ Carbide alloy is embedded into cone head of value, flow nipple, plunger and orifice plate.
√ Both thrust bearings with large load capacity and composite rubber-plastic stem lip packing reduces operating.
|
Bore Size |
2-1/16" to 7-1/16" |
|
Working Pressure Rating |
2000psi to 20,000psi |
|
Material Class |
AA, BB, CC, DD, EE, FF |
|
Temperature Class |
K, L, P, R, S, T, U, V |
|
Product Specification Level |
PSL1 to PSL3 |
|
Performance Rating |
PR1 and PR2 |
|
End connections |
Flanged, Threaded, Union and BW |
|
Medium |
Oil, Gas, Water, etc |
