Frac Trees and Frac Valves
- Product description: Frac Trees and Frac Valves are strictly designed and manufactured in according with relative standard for severe fracturing applications.
PRODUCT INTRODUCTION

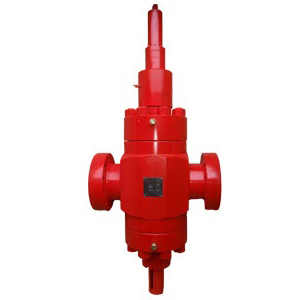

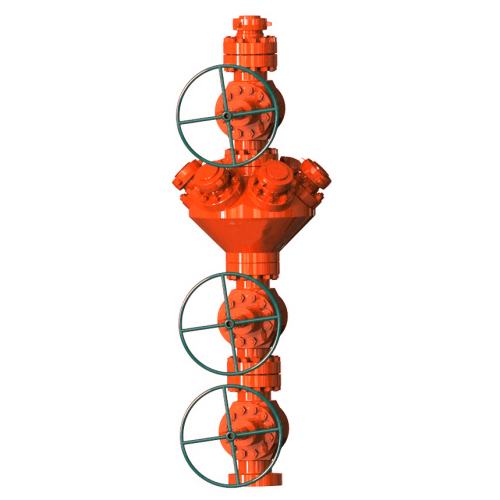

YanCheng ValveDepot Manufacture Co., Ltd. Frac Trees are strictly designed and manufactured in according with relative standard for severe fracturing applications. Our full-bore opening trees are ideal trees for harsh operating environments such as high pressure and high temperature, the main component. Our frac valves were improved from Cameron FLS-R style gate valve which manufactured with the highest quality.
√ Forged body and bonnet to bonnet, meta-to-metal seal.
√ Metal-to-metal back seal can be energized regardless of gate position.
√ Ball screw stem when manual operation.
√ Bi-directional FLS-R style slab gate valve for high pressure.
Bore Size
1-13/16” to 9”
Working Pressure Rating
5,000 to 20,00 psi
Material Class
AA, BB, CC, DD, EE, FF
Temperature Class
L, P, R, S, T, U, V
Product Specification Level
PSL 1 to PSL 3
Performance Rating
PR1 and PR2
